MX-5 Intake Pipe – Enlarged Cobra Intake Section

MX-5 Intake Pipe – Enlarged Cobra Intake Section

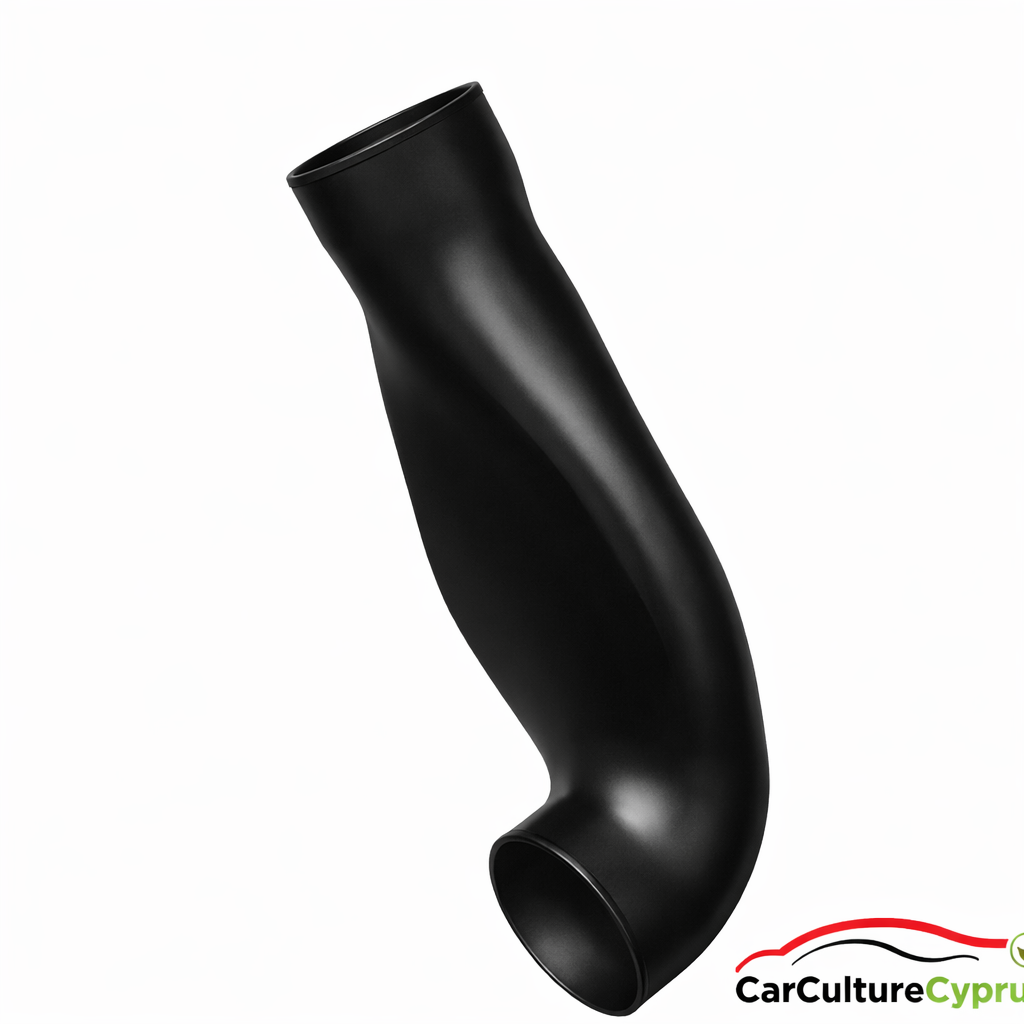

Custom enlarged intake pipe section designed for Mazda MX-5 fitted with a Cobra-style intake system, developed to remove flow restrictions present in the original configuration.

This design increases both inlet and outlet diameters and refines the internal geometry to maintain a more consistent effective airflow area through the bend, improving overall intake efficiency.

⭐ Key Features

Designed for Mazda MX-5 with Cobra intake setup

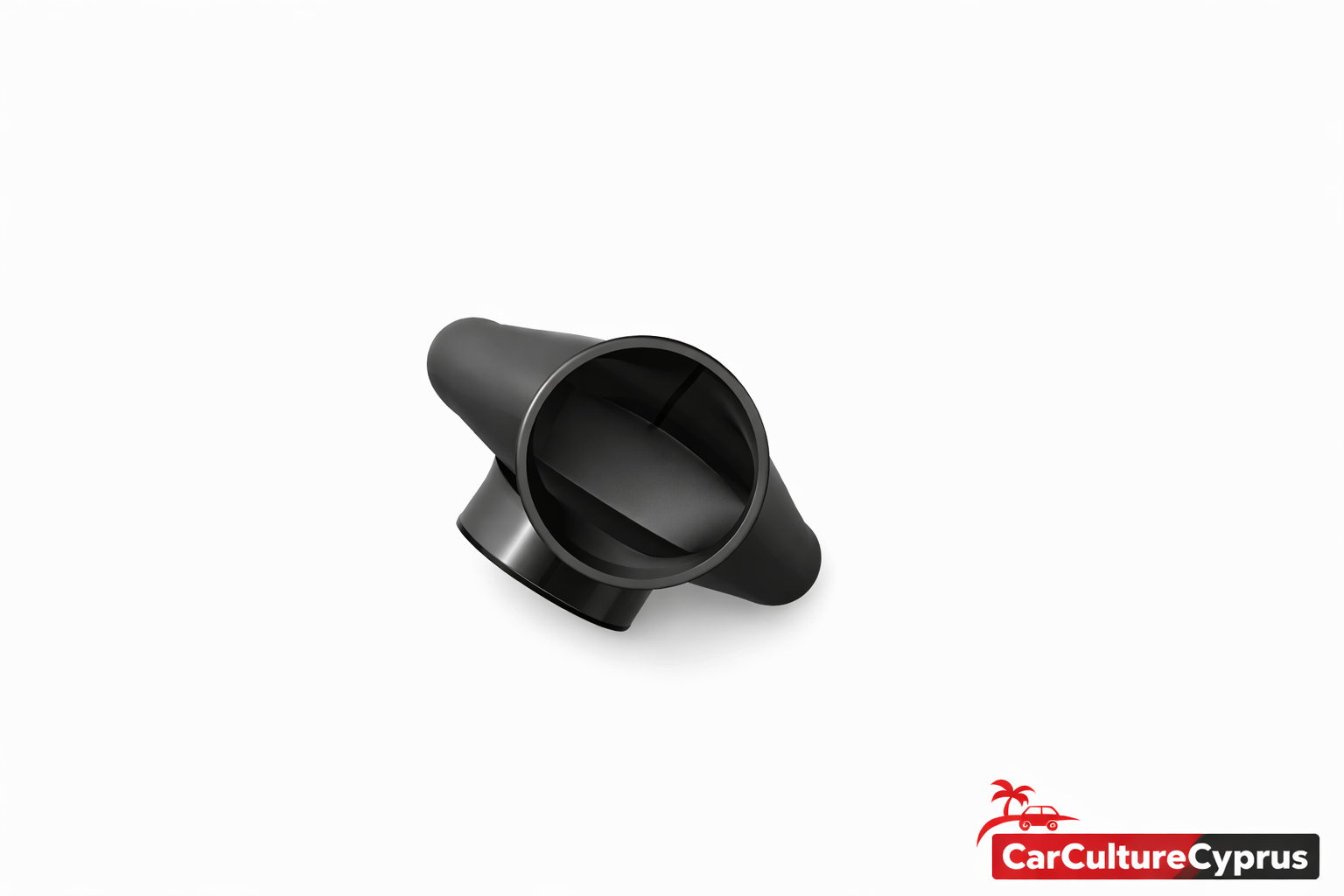

Enlarged inlet diameter: 70 mm (2.75")

Outlet diameter matched to throttle body: 65 mm (2-9/16")

Optimized internal geometry for smoother airflow

Revised center section for more consistent equivalent flow area

Integrated hose barbs to help prevent silicone couplers from slipping

Slightly opened bend angle (approx. 95°) for improved alignment

These changes ensure the Cobra intake is no longer the main restriction in the intake system.

🚗 Vehicle Compatibility

Mazda MX-5

Vehicles using a Cobra-style intake pipe

Custom or modified intake layouts

⚠️ Fitment depends on engine version and surrounding components.
Please compare photos and dimensions with your setup before ordering.

🔧 Installation Notes

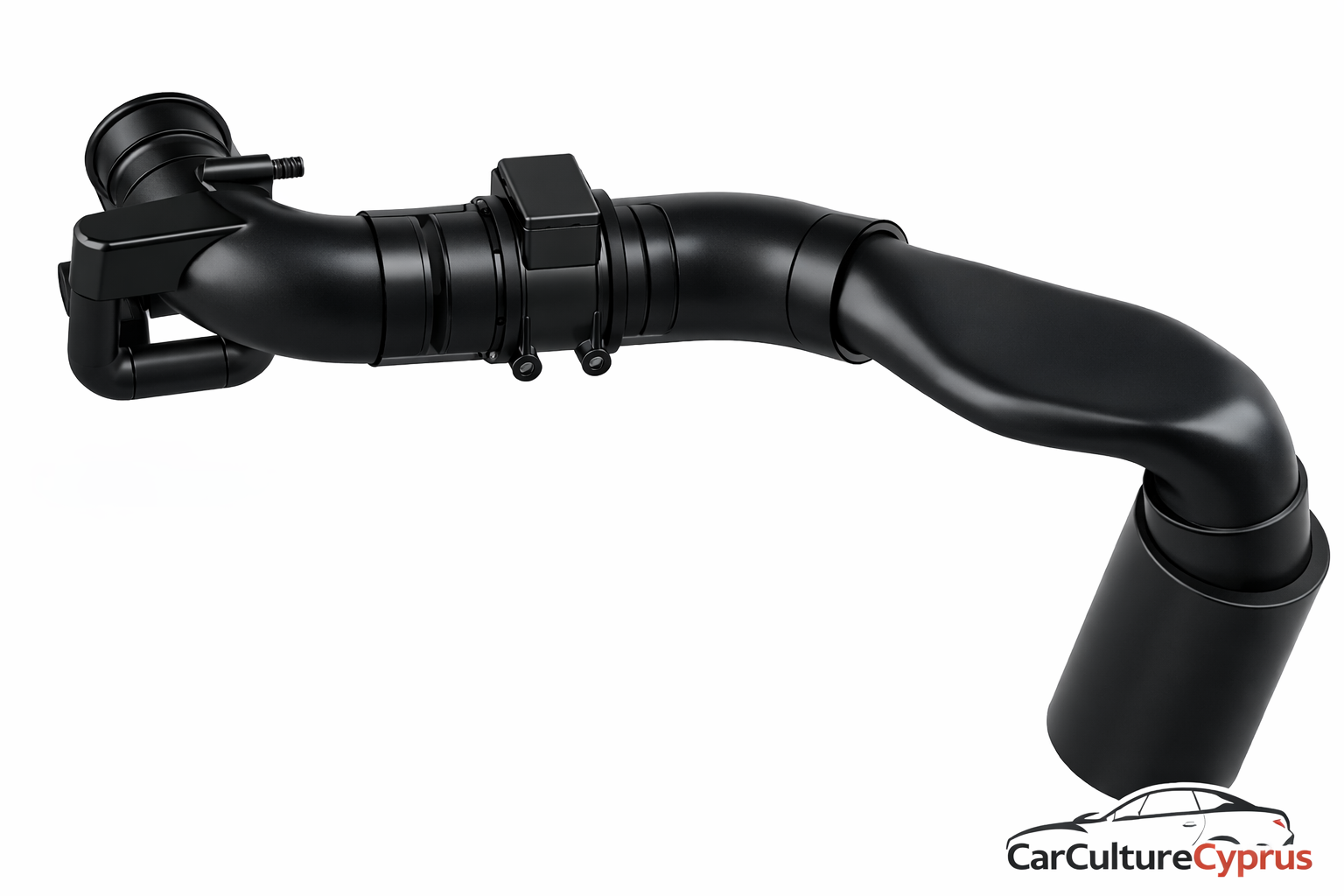

Installs inline using standard silicone couplers and hose clamps

Designed to connect directly to a 65 mm throttle body

Integrated barbs help retain silicone hoses under boost or vibration

Hoses, clamps, and fittings are not included

Test-fit recommended before final installation

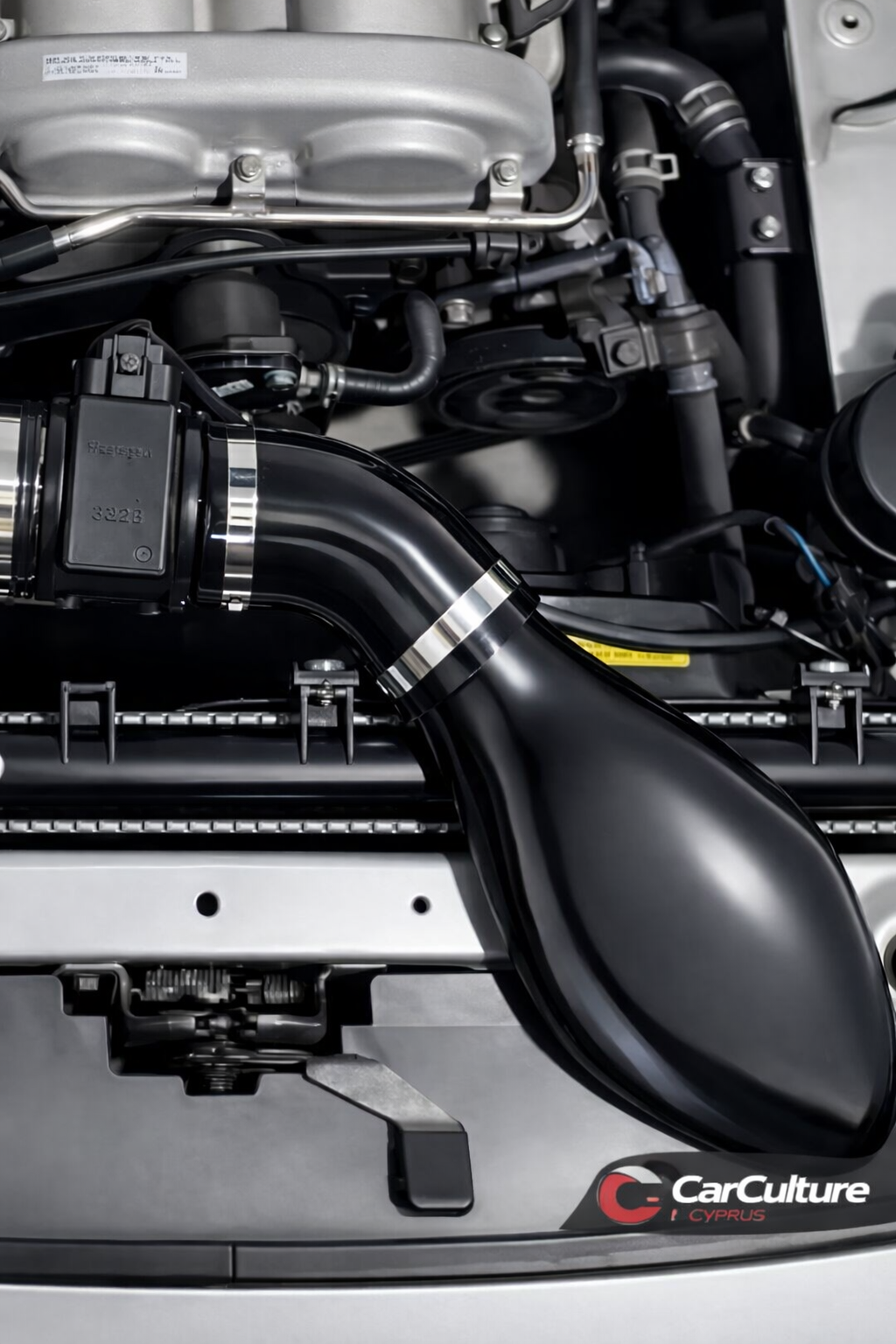

Clearance considerations were taken into account based on radiator and bonnet spacing.

🧠 Technical Design Notes

Inlet increased from 63 mm to 70 mm to maximise flow through the tight bend

Outlet set to 65 mm, matching throttle body diameter

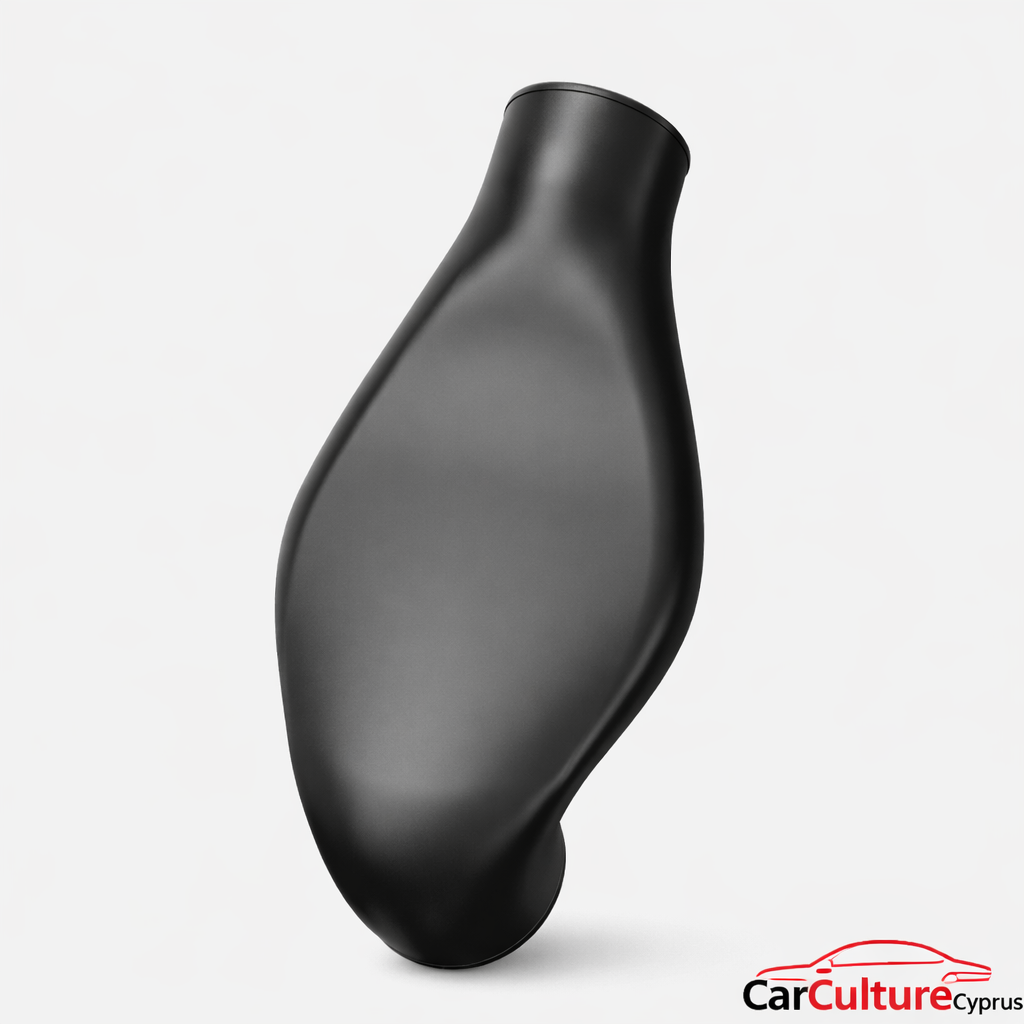

Middle section redesigned to avoid flow inconsistency seen in square or uneven profiles

Wall thickness increased to 3 mm for strength, heat resistance, and durability

Although the MAF housing measures 70 mm externally, its internal cross-sectional flow area is smaller due to internal geometry.

🖨 Material & Manufacturing

3D printed in ASA plastic

Heat-resistant – suitable for engine bay environments

UV-stable for long-term use

Strong, rigid construction

This is a 3D-printed part.
Minor layer lines or surface marks may be visible.
Optional surface finishing or coating is recommended for a refined appearance.

📦 What You Receive

1× Enlarged intake pipe section for Mazda MX-5 Cobra intake setup

(No hoses, clamps, or filters included)

⚠️ Important Notes

Aftermarket performance accessory, not an OEM part

Intended for custom or modified intake systems

Always verify dimensions, hose routing, and clearances before purchase
