Mazda RX-8 Center Console Gauge Pod – 3×52mm Angled Insert with Hood

Mazda RX-8 Center Console Gauge Pod – 3×52mm Angled Insert with Hood

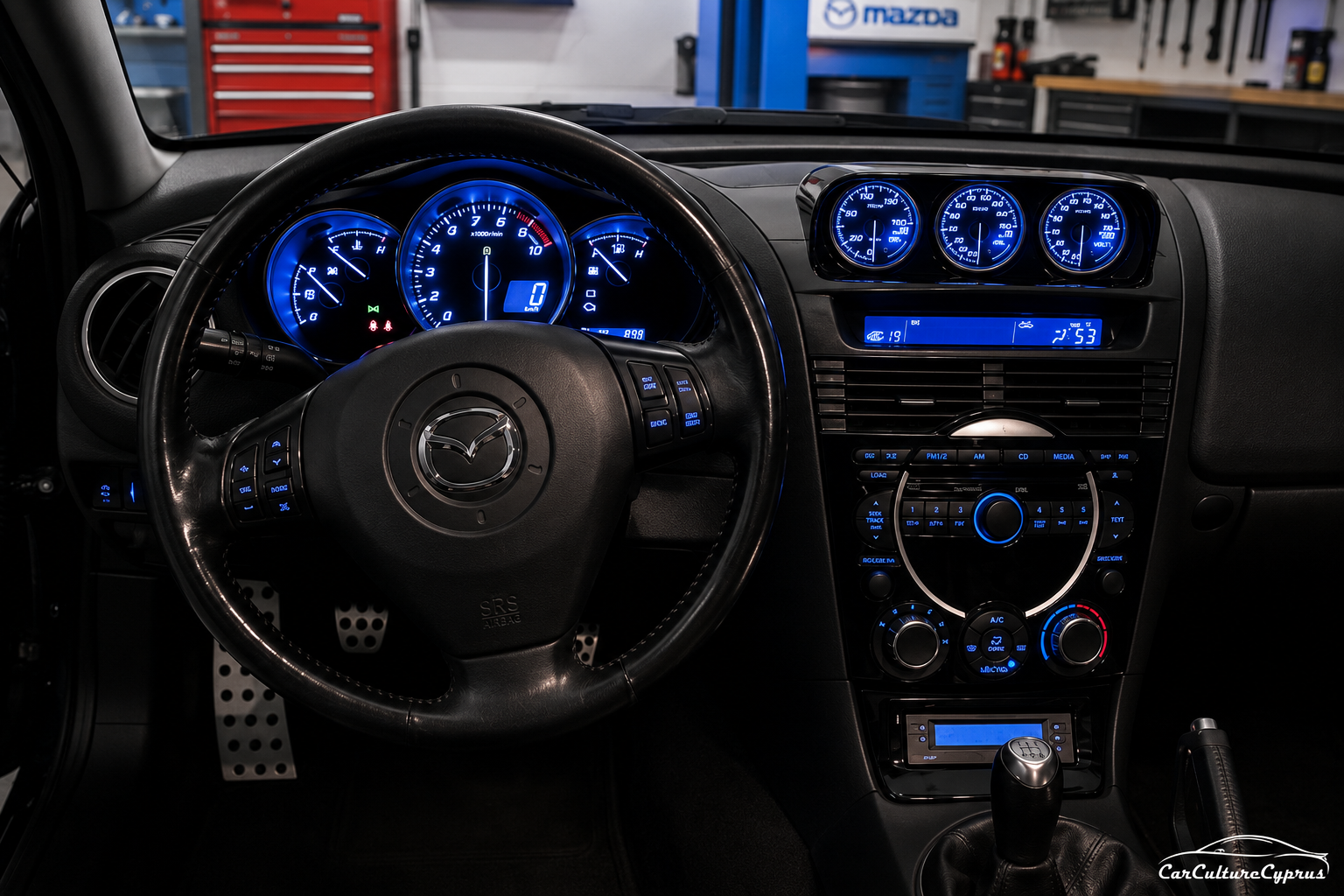

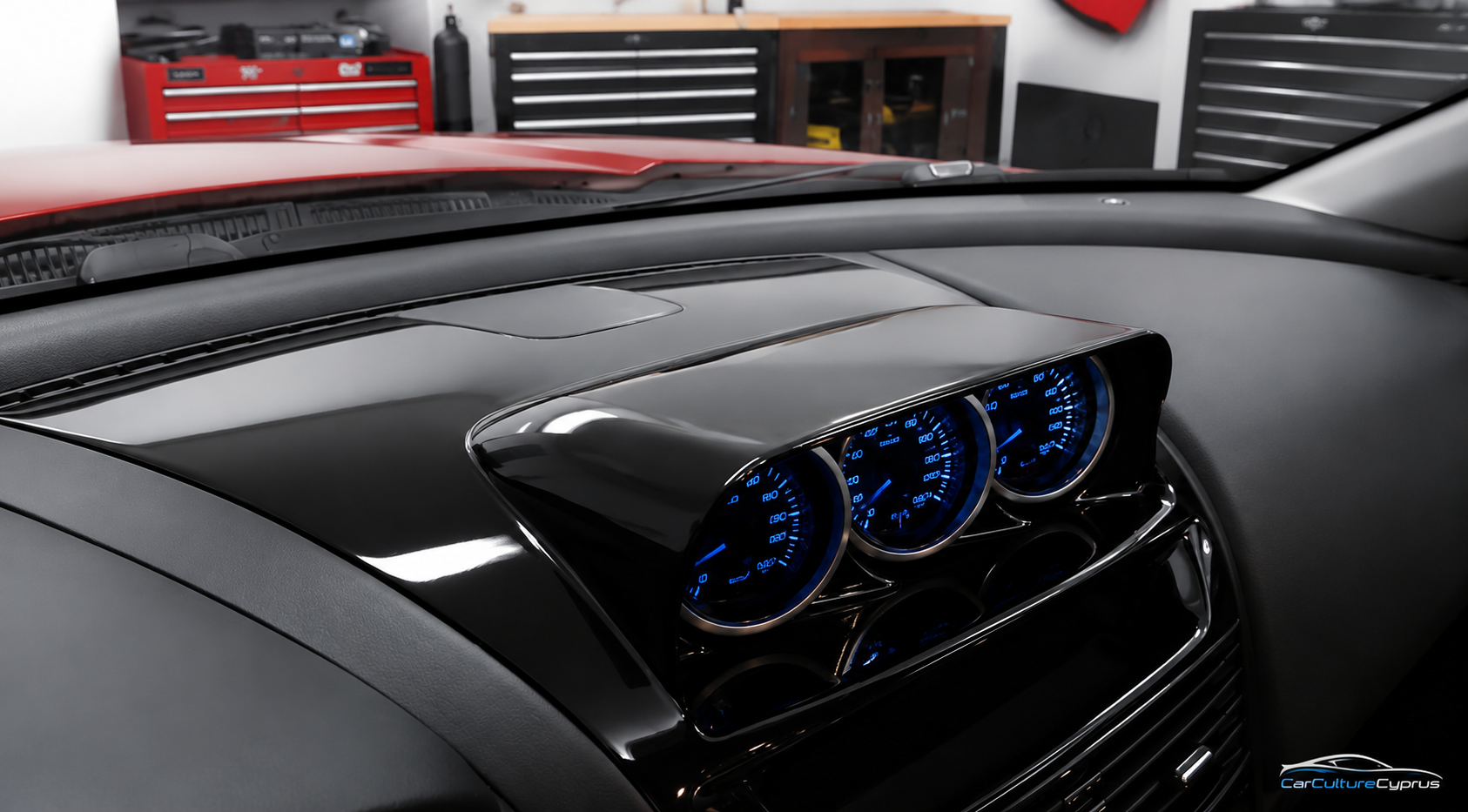

Add a custom 3-gauge setup to your Mazda RX-8 interior with this center console gauge pod, designed to be molded into the factory center dash / console panel.

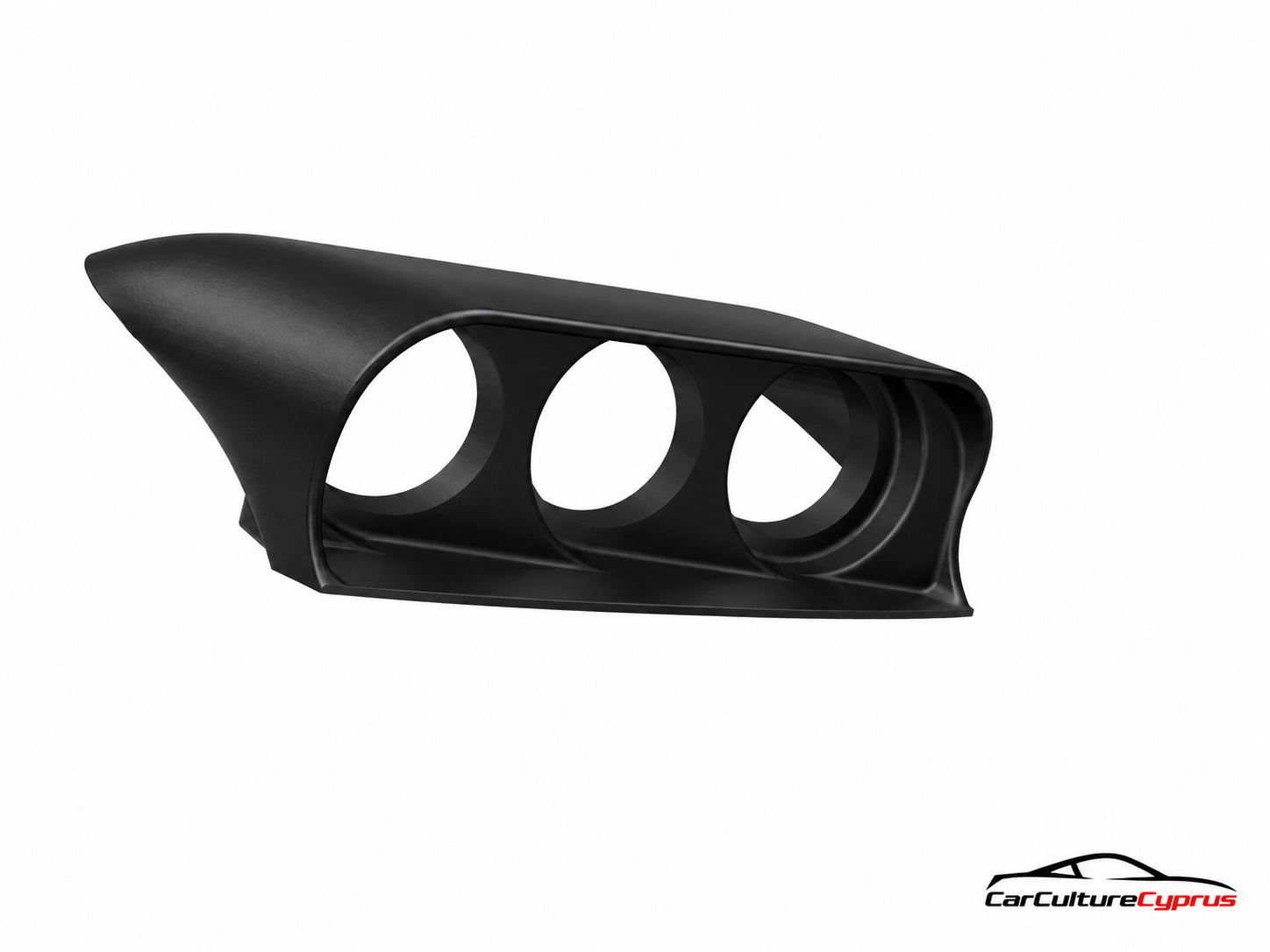

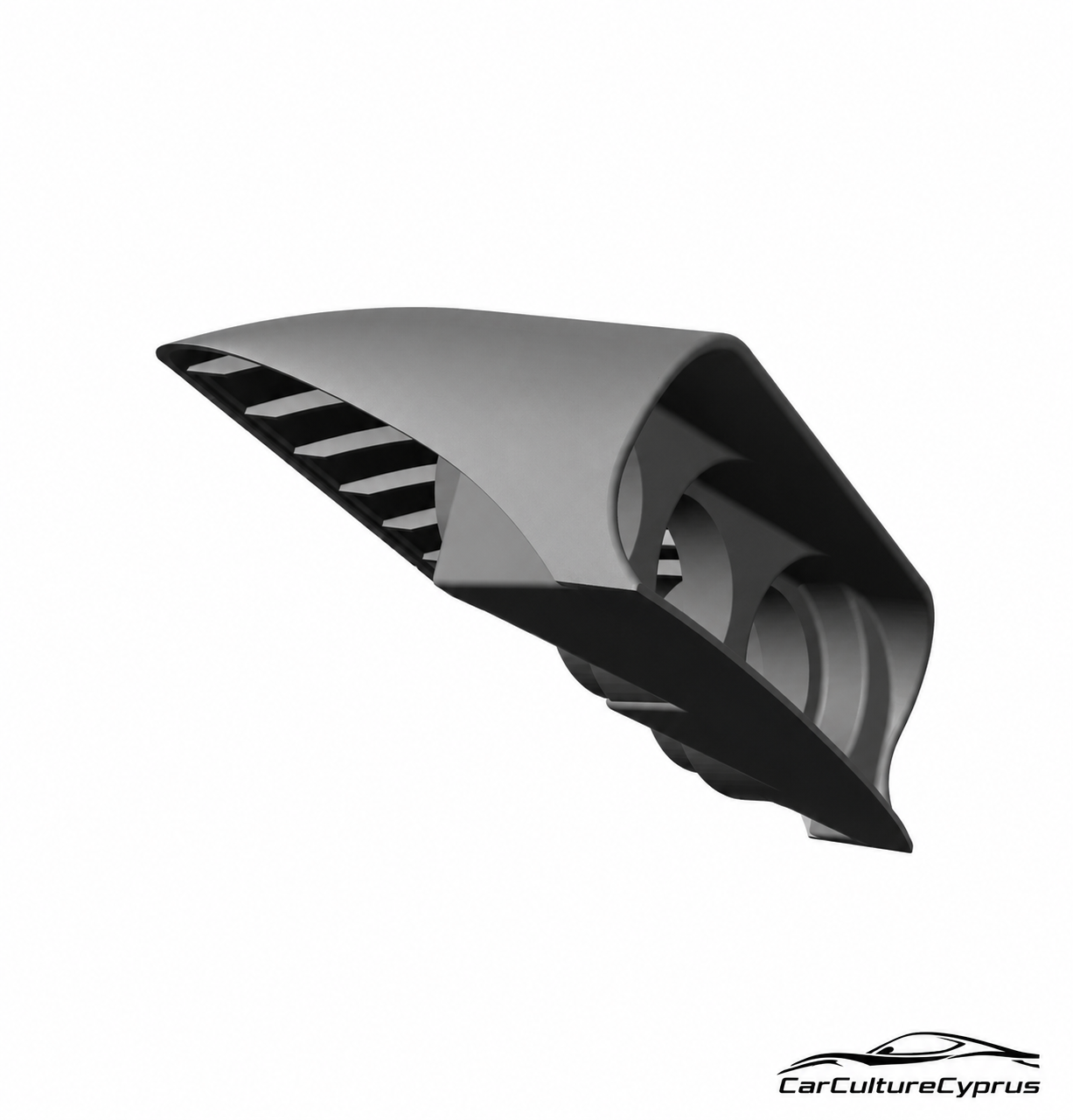

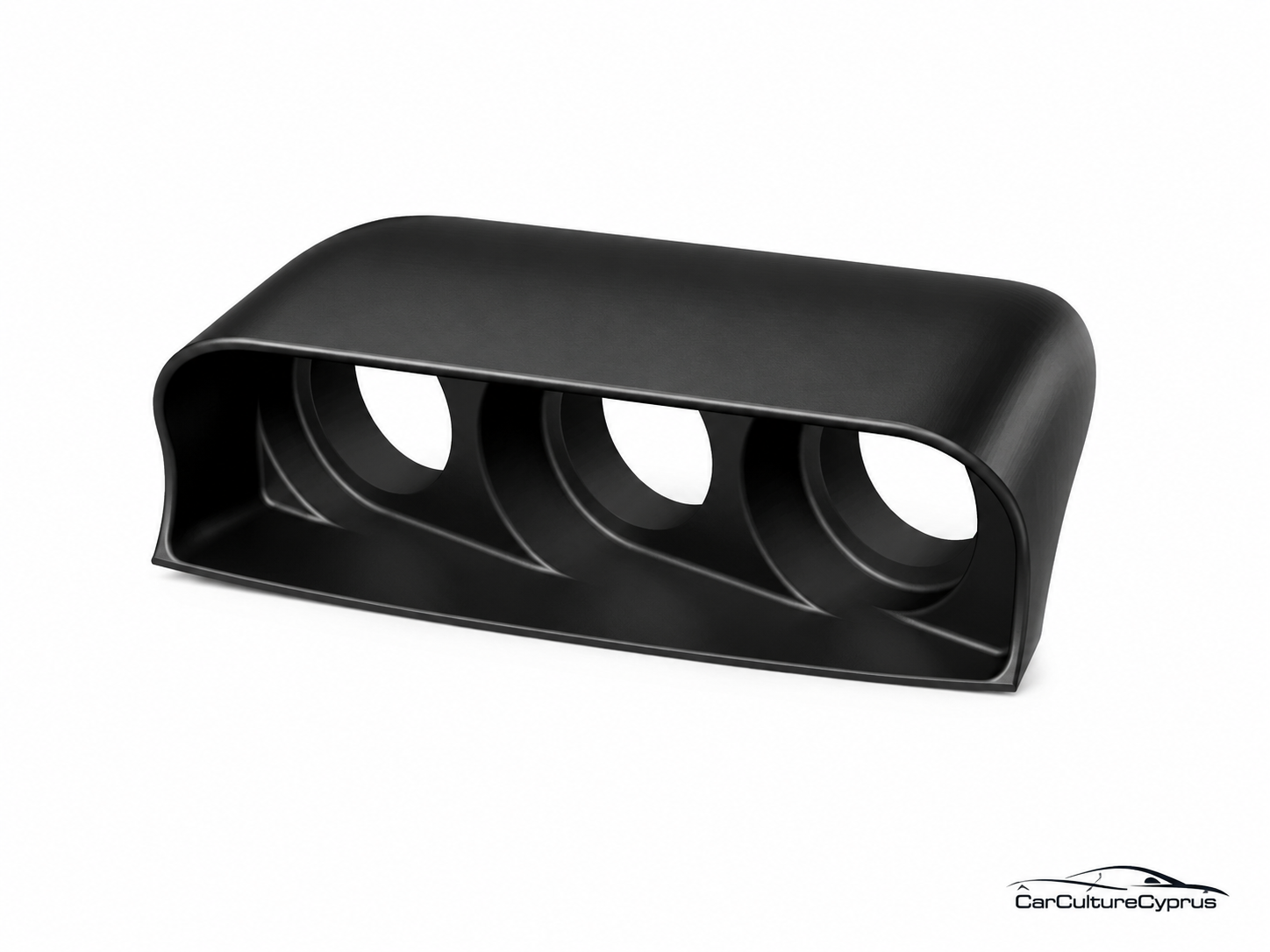

This pod is made for 3× 52mm gauges and was originally designed around Defi BF-style gauges. The gauge angle is aimed toward the driver for better visibility, and the small built-in hood helps reduce sunlight glare on the gauge faces.

⭐ Features

Designed for Mazda RX-8 center dash / center console area
3-gauge layout for standard 52mm gauges
Originally designed around Defi BF-style gauges
Gauge angles are aimed toward the driver

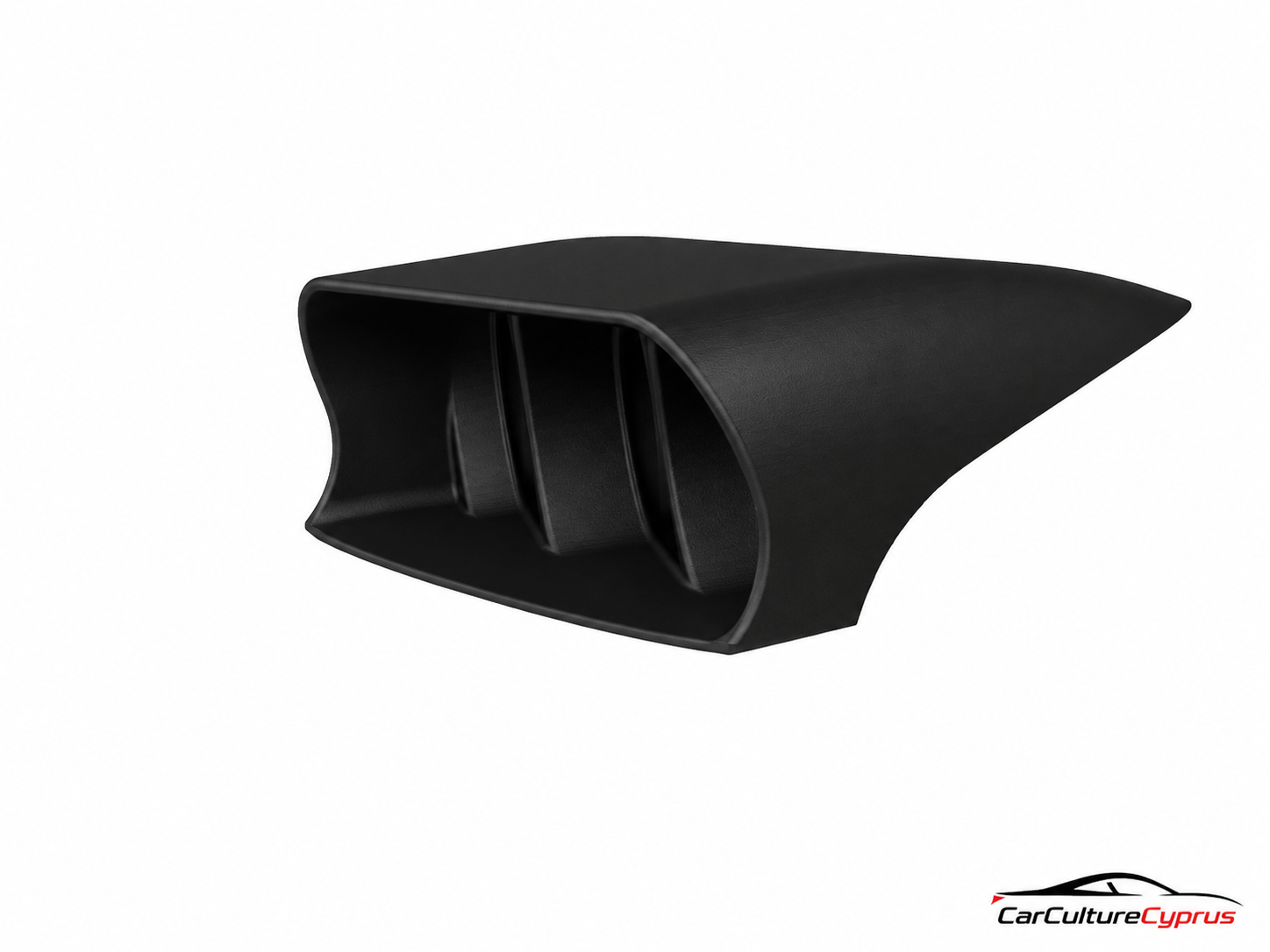

Small integrated hood helps reduce sunlight glare
Designed to recess into the center dash panel
Uses the available space behind the center panel area
Clean custom interior upgrade when finished properly
Good option for performance builds, track cars, turbo builds, and custom dashboards
Suitable for oil pressure, oil temperature, boost, AFR, voltage, or similar gauges

🔧 Fitment & Installation

Vehicle compatibility:
Mazda RX-8

Installation location:
Center dash / center console panel area

Gauge details:
Designed for 3× 52mm gauges

Important fitment note:
This is not a simple drop-in part.
The factory center dash / console panel must be cut, fitted, bonded, filled, sanded, and painted for proper installation.
Professional or experienced custom installation is strongly recommended.

Installation overview:
Remove the center dash / console panel from the vehicle
Check the space behind the panel before cutting
Use the gauge pod as a guide/template for marking the opening
Cut the opening carefully, usually with a rotary tool such as a Dremel
Trim and adjust the fit gradually until the pod sits correctly

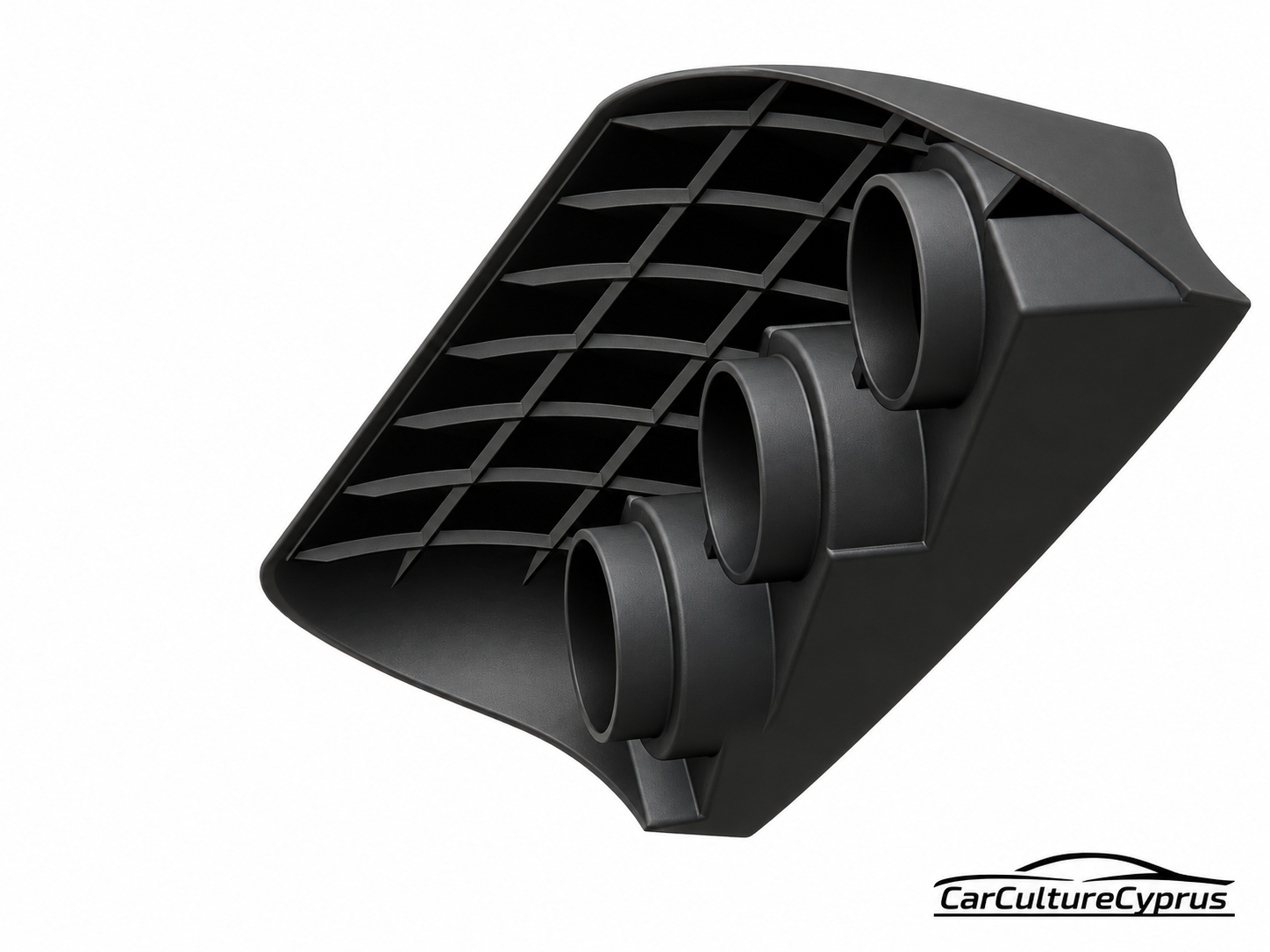

The pod is designed to recess slightly into the dash panel
Bond the pod into the panel using suitable plastic/bodywork materials
Additional reinforcement from the rear side is recommended
Filling, sanding, primer, and paint are required for a finished OEM-style look

Installation notes:
Console modification is required
Cutting, sanding, bonding, filling, and finishing are needed
Original designer’s installation instructions can be found on the RX8Club forum
Final finish depends on the installer’s bodywork and painting quality
Gauges, wiring, sensors, adhesive, fiberglass, filler, primer, paint, and hardware are not included
Install only if you understand how the part should be fitted and finished

🖨 Material & Print Quality

Printed in ASA only
Heat-resistant – suitable for hot car interiors
UV-stable – ideal for long-term use
Strong and rigid construction

This is a 3D-printed part. Minor layer lines, support marks, or surface marks may be visible. Sanding, filling, priming, and painting are recommended for a smooth final cosmetic finish.

📦 Included

1× Mazda RX-8 Center Console Gauge Pod

Gauges, wiring, sensors, adhesive, fiberglass, filler, primer, paint, and installation materials are not included.

Design Attribution

Original design by pmtardy, licensed under the Creative Commons Attribution-ShareAlike license.

This product is a physical 3D-printed part made and sold by CarCultureCyprus. Original designer is not affiliated with this shop and does not endorse this product.
