Jeep TJ 5.25” In-Dash Speaker Pods — Left & Right

Jeep TJ 5.25” In-Dash Speaker Pods — Left & Right

Upgrade the front sound stage of your Jeep TJ with this custom-designed set of 5.25-inch in-dash speaker pods. These pods replace the factory dash speaker mounts and give your Jeep significantly more air volume and depth for clearer mids, stronger output, and an overall richer sound experience.

Designed to maximize internal airspace while maintaining correct dash geometry, these pods accept standard 5.25" speakers, including deeper aftermarket models used by many owners.

✔ Fitment

Based on user installs and confirmed feedback:

Direct Fit:

1997–2000 Jeep TJ (fits both sides with minor trimming depending on model year)

Possible Fit With Modifications:

2001–2002 Jeep TJ — reported interference due to an internal metal support. Some owners trimmed or removed part of the metal frame to install.

1999 and earlier TJs — may require trimming around the headlight switch bracket.

Not Confirmed / Not Recommended Without Fabrication:

Any TJ with additional aftermarket dash reinforcements

RHD models

✔ Installation Notes

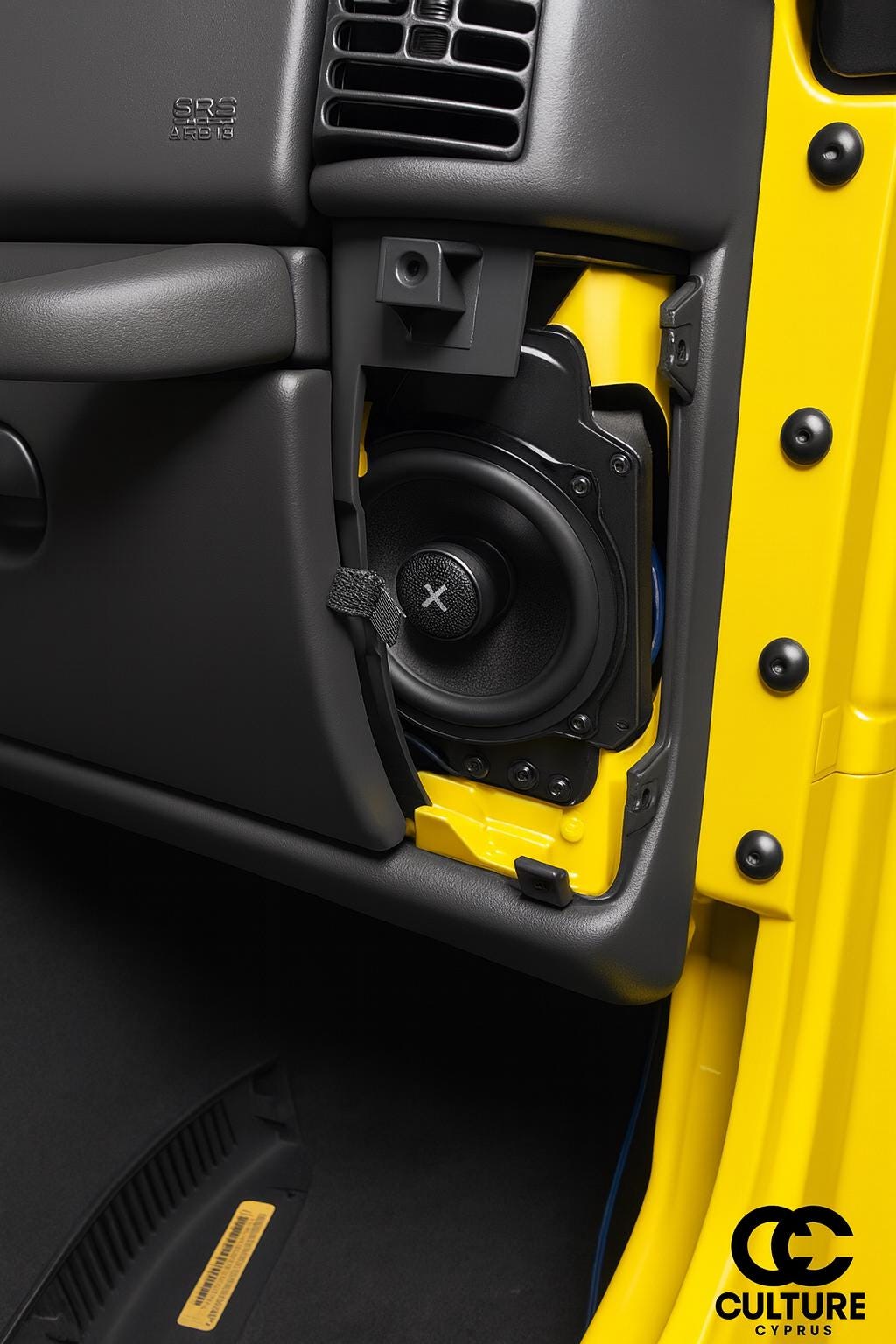

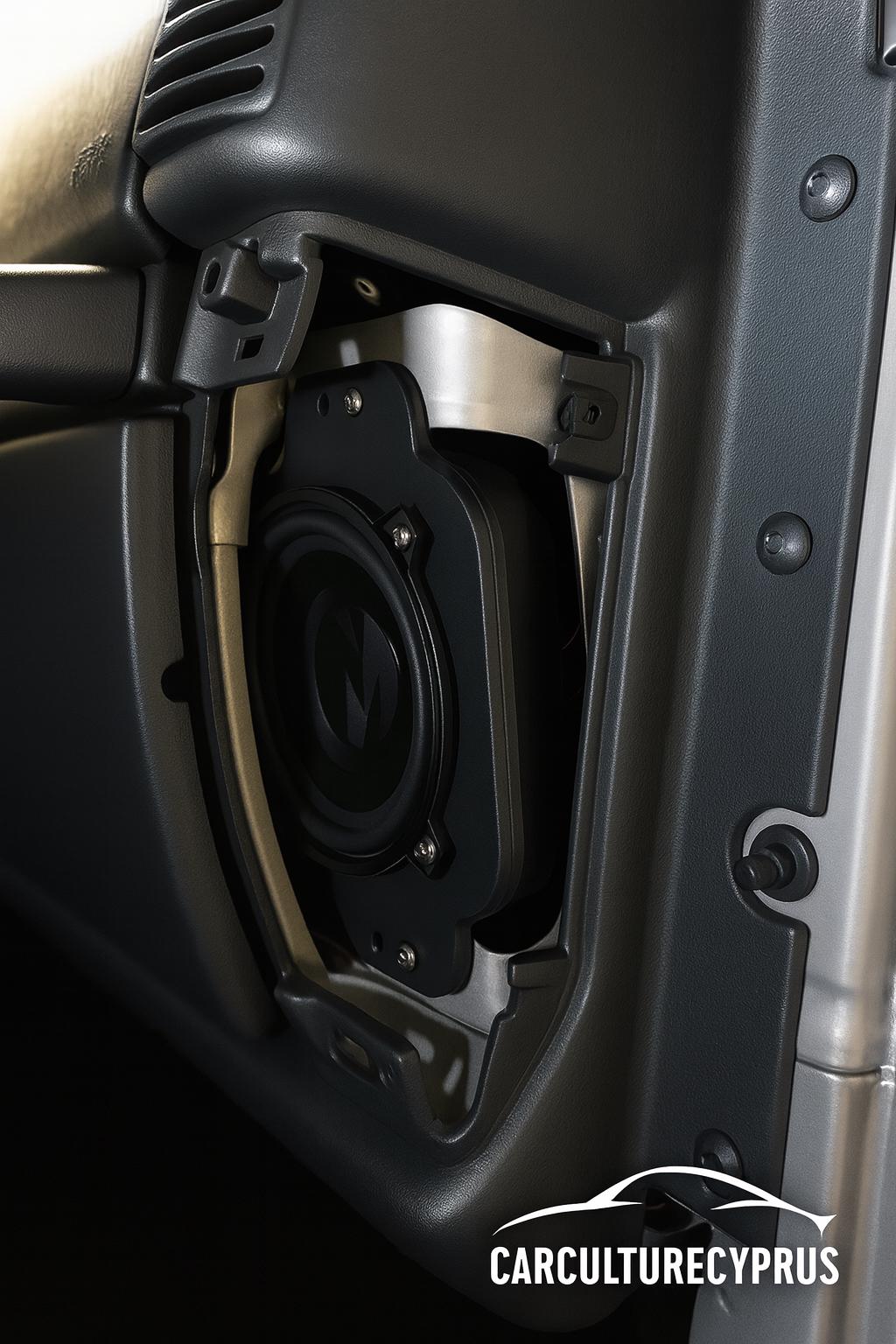

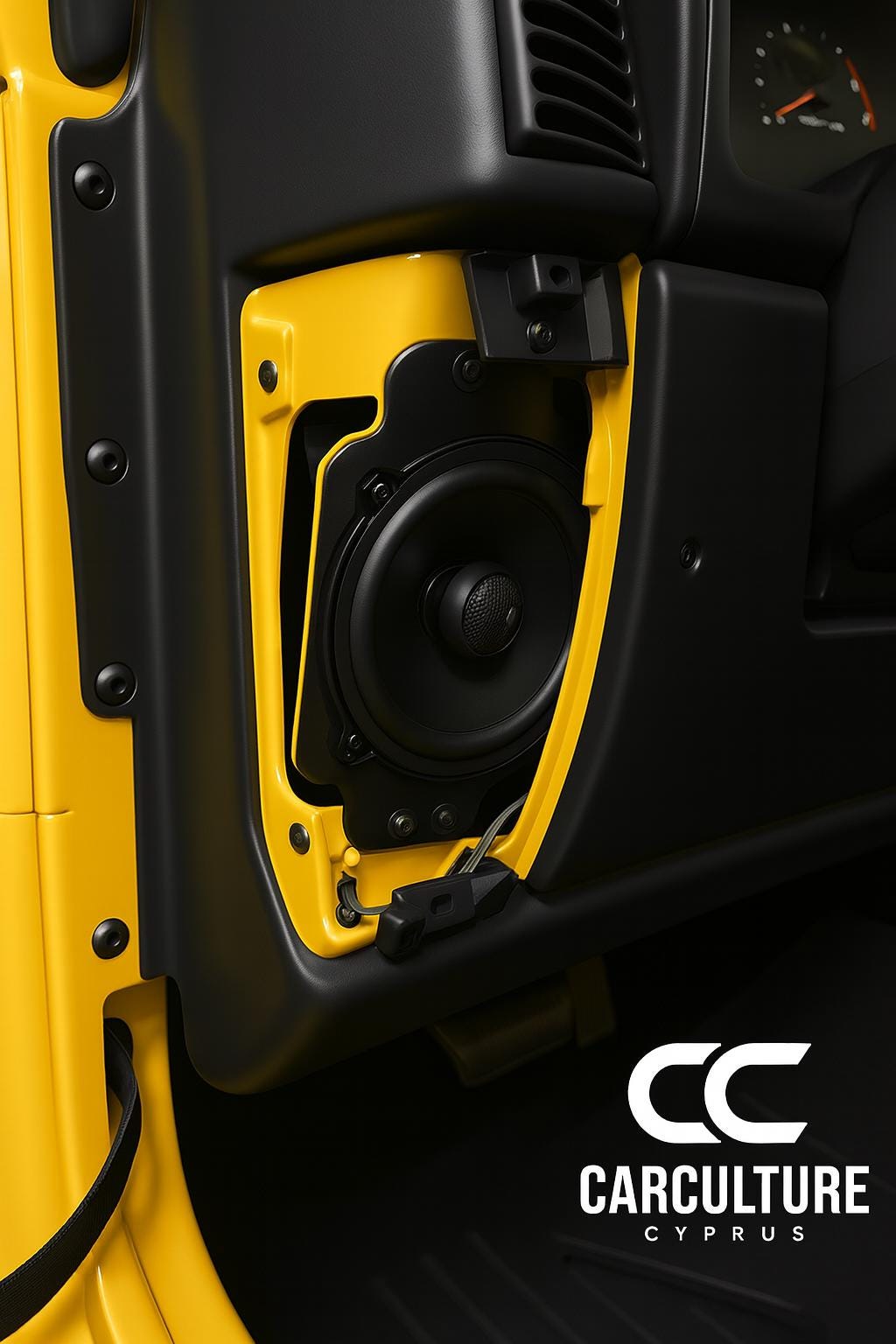

These pods install behind the factory dash grille and use the existing screw points.
General installation steps:

Remove the dash grille and factory speaker mount.

Test-fit the pod in the opening.

Trim small areas of excess metal or plastic only if necessary (varies by year).

Mount your 5.25" speaker inside the pod.

Use CA glue or plastic-safe adhesive to join the front face plate.

Drill a small wire pass-through hole if your speakers require it (many owners did this).

Install the assembled pod into the dash using the original screws.

Some owners added poly-fill inside the pod for improved acoustic behavior (optional).

✔ Benefits

Much larger internal airspace than the stock dash mount

Better midrange response thanks to deeper enclosure volume

Compatible with many popular 5.25” speakers (Memphis PRX50C, NVX VSP525s, etc.)

Designed as separate left and right shells for easier installation

Strong, durable design optimized to survive in hot Jeep interiors

✔ What You Receive

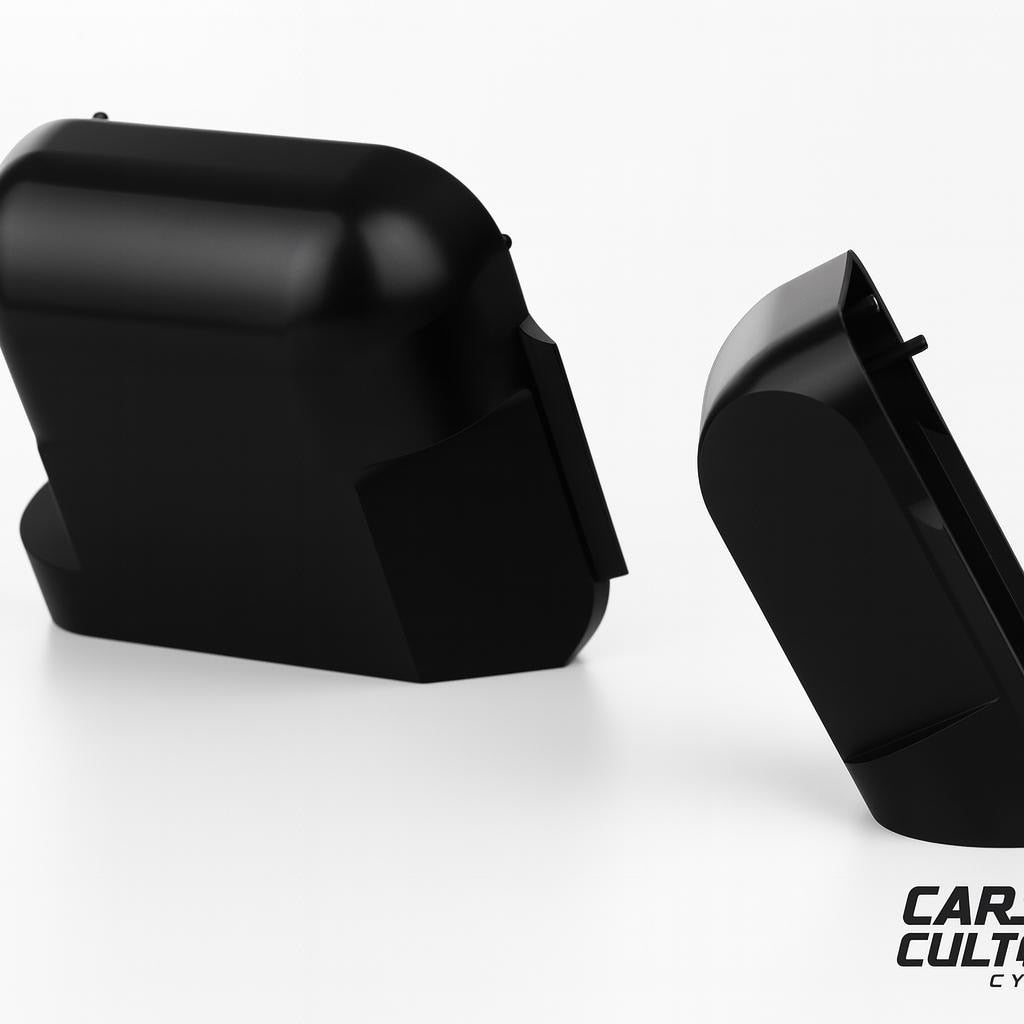

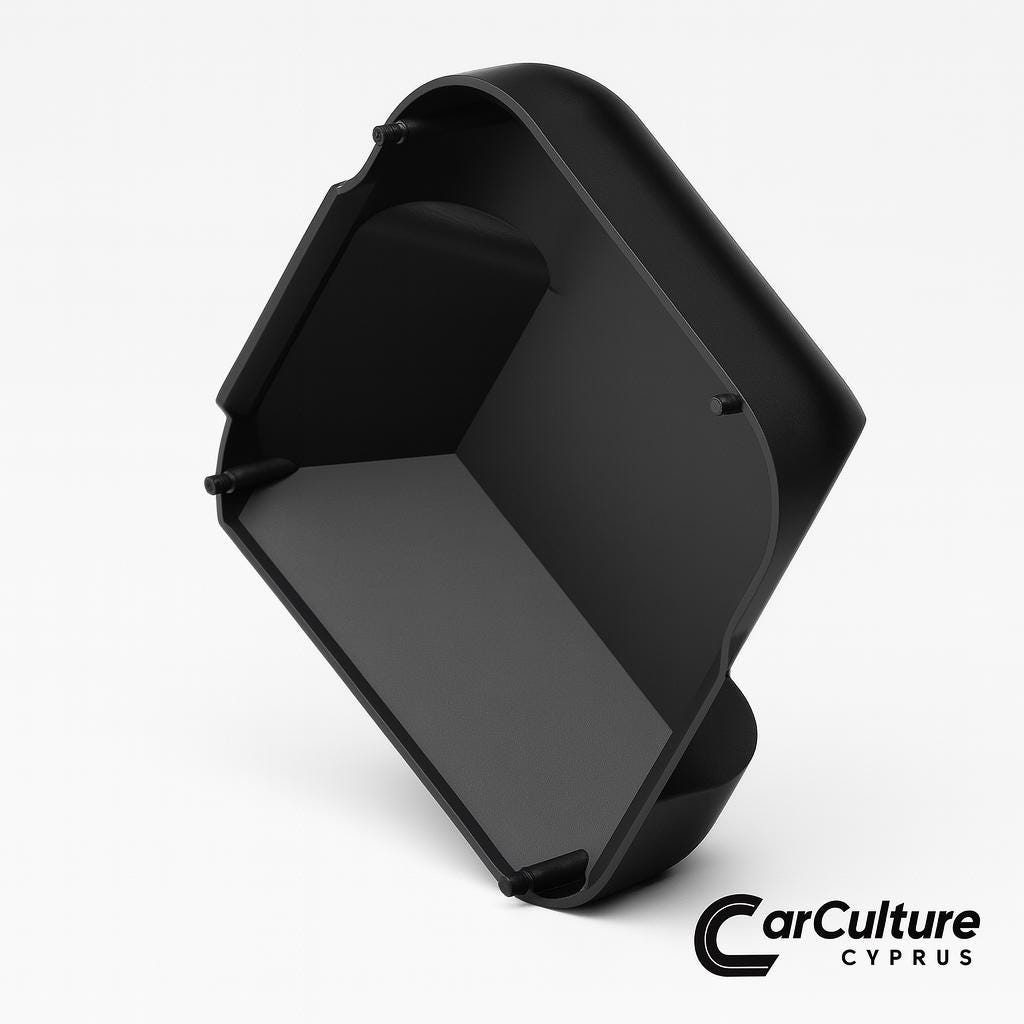

Left speaker pod enclosure

Right speaker pod enclosure

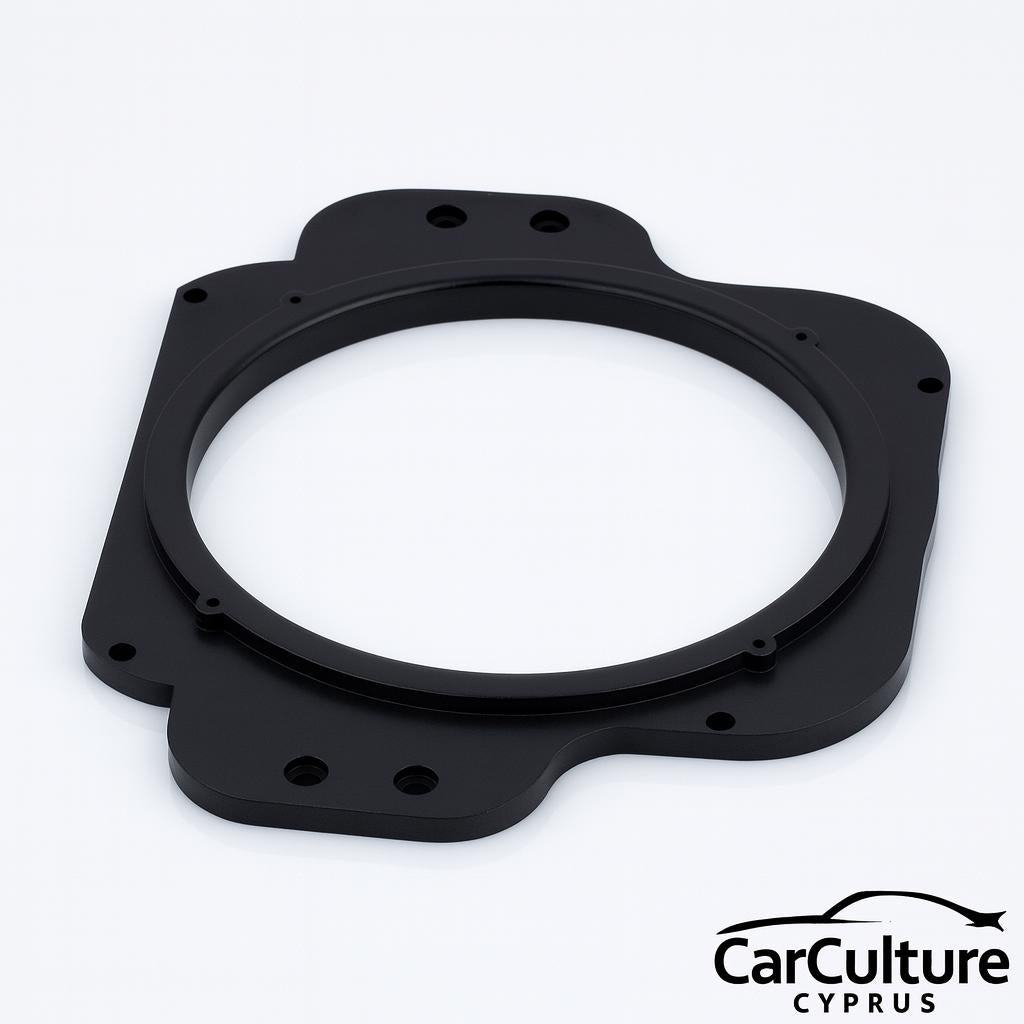

Left front face plate

Right front face plate

(All parts are 3D-printed, high-quality, and ready to install.)

✔ Important Notes

Some years require light trimming behind the dash (common feedback).

Wiring hole may need to be drilled depending on your speaker choice.

Speakers are not included.

This part is based on an original community design; credit to the contributors who developed and tested the early versions.
