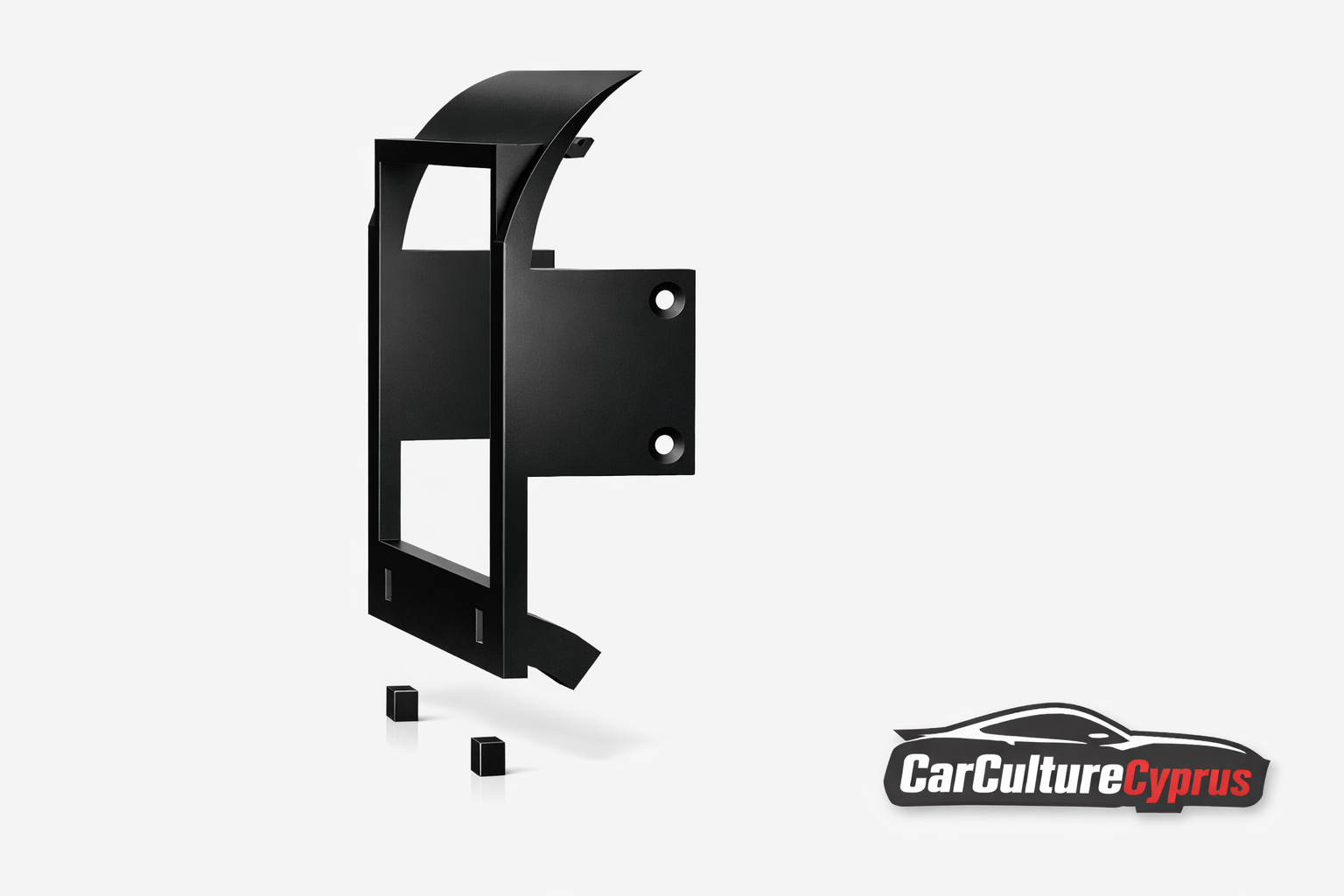

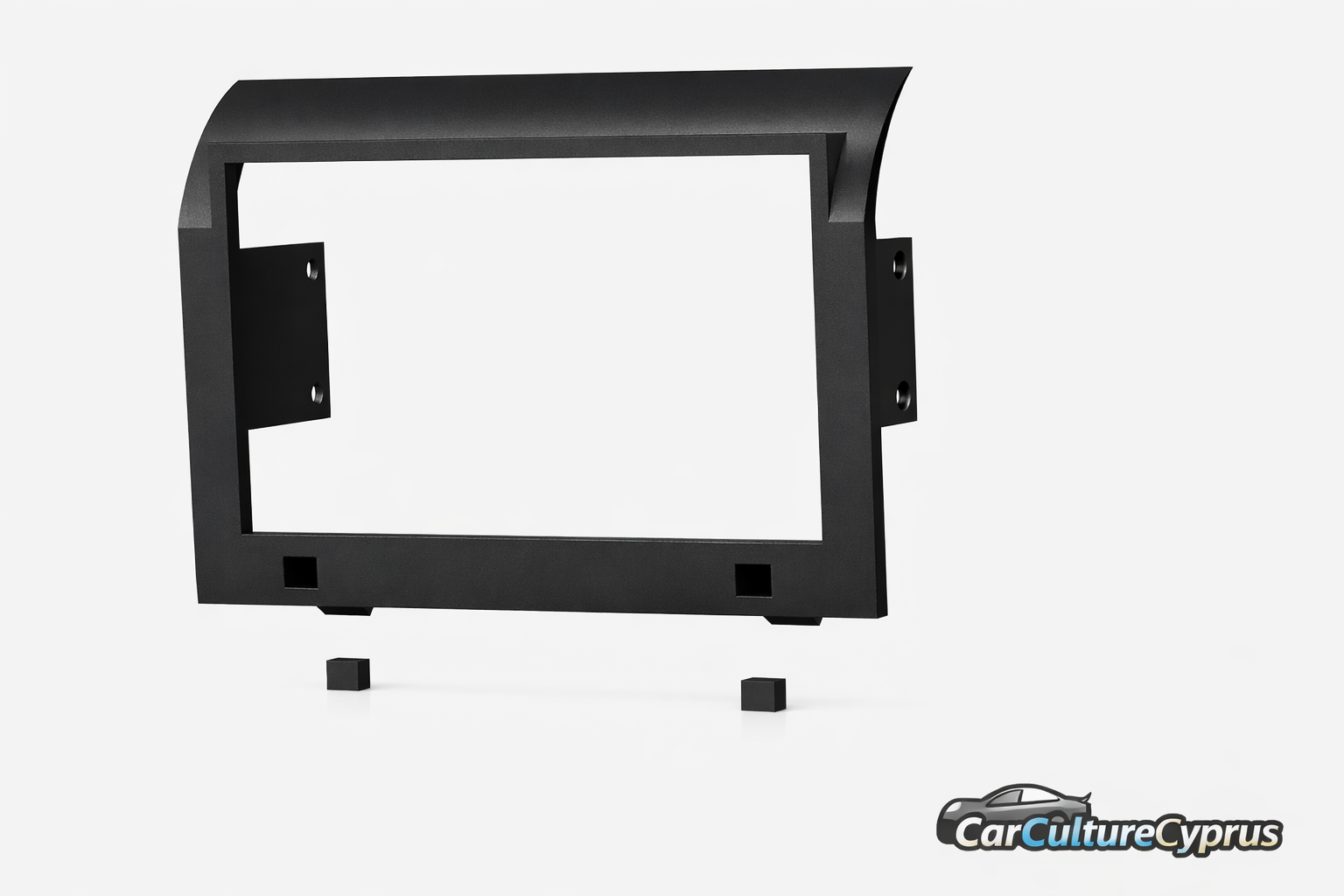

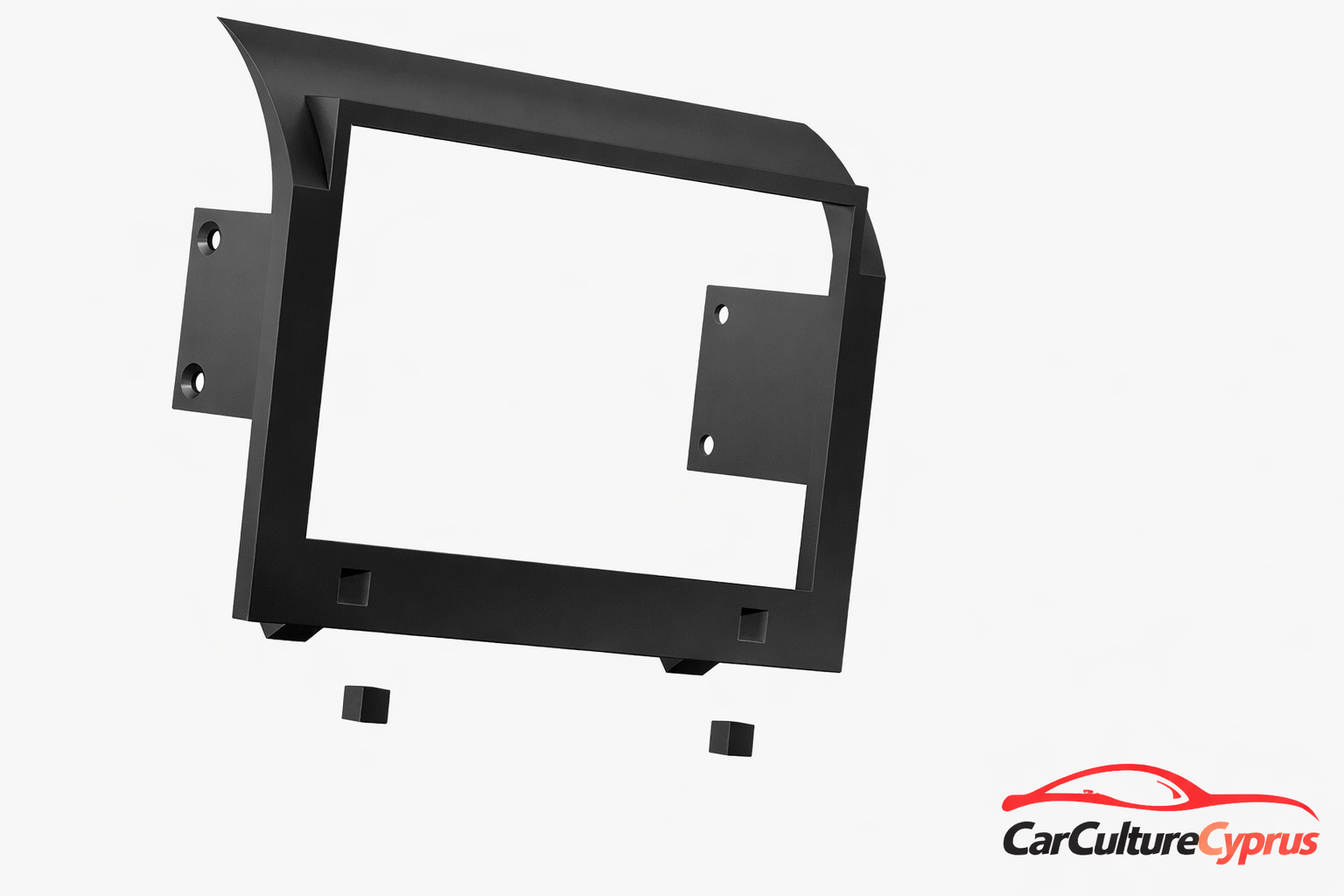

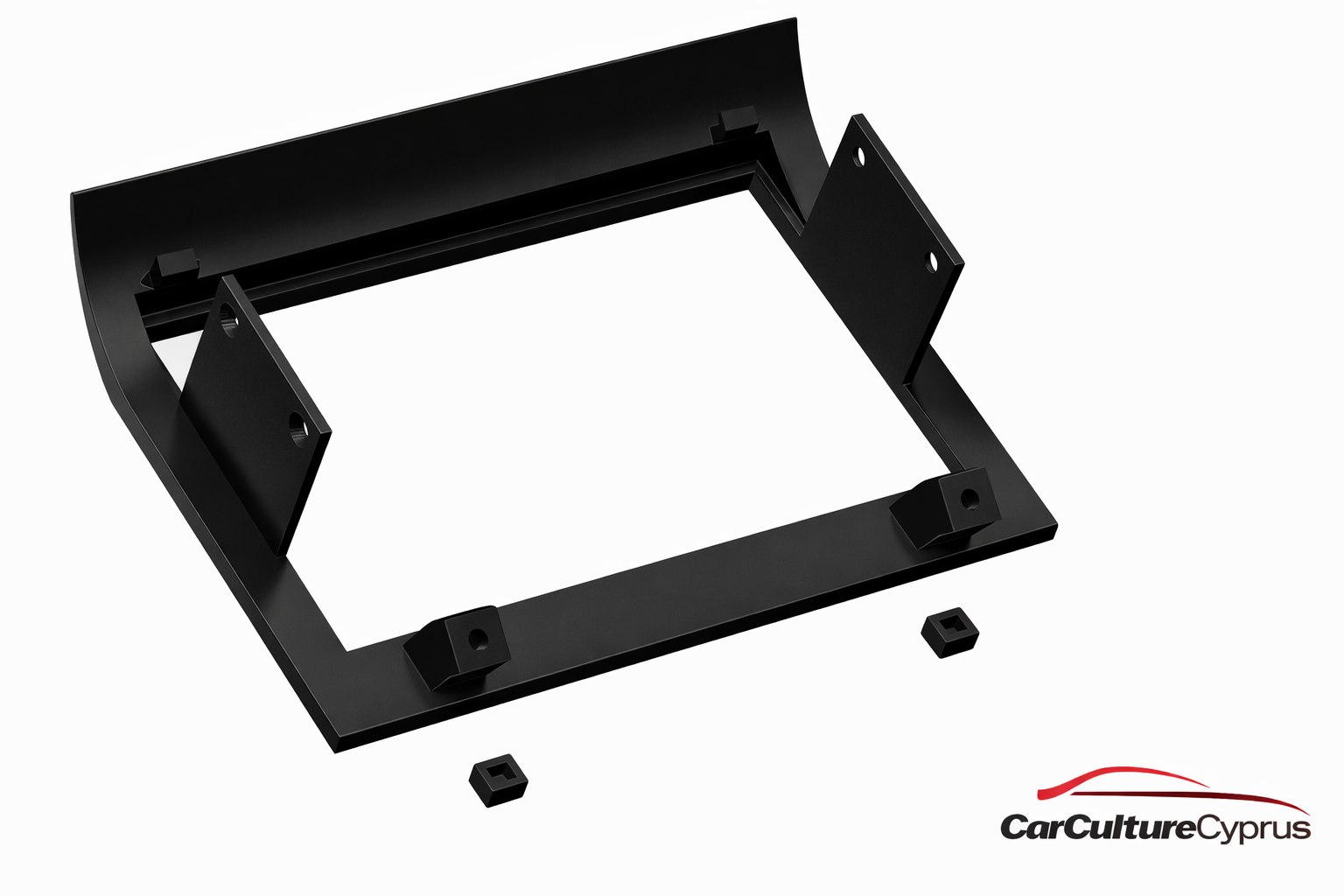

Fiat Ducato 2 DIN Radio Frame 7 Inch Screen Support Interior Mount 2017
This is a 2 DIN radio frame and screen support designed for
Fiat Ducato (2017 interior layout)
The frame is intended to mount 7 inch 2 DIN head units with large touch screens, including units supporting Apple CarPlay and Android Auto
Designed as a clean interior mounting solution, providing correct screen positioning and secure fixation inside the dashboard opening
FEATURES
2 DIN radio mounting frame
Designed for Fiat Ducato 2017 dashboard layout
Supports 7 inch touchscreen head units
Compatible with CarPlay and Android Auto radios
Secure mounting using screws and upper hooks
Clean OEM-style interior appearance
RADIO COMPATIBILITY
Designed for 2 DIN head units with 7 inch screens
Confirmed compatible with units such as:
• AWESAFE 7 inch 2 DIN head units
• Similar 2 DIN CarPlay / Android Auto radios
Radio unit is not included
VEHICLE COMPATIBILITY
Fiat Ducato
Model year: 2017
Only compatible with dashboards using the same radio opening shape
Please compare photos and dimensions before purchase
INSTALLATION
For installation:
Insert the side where the screws are located first
Push the upper part to engage the mounting hooks
Secure using appropriate screws
No cutting of the dashboard required
Test-fit recommended before final installation
WHAT IS INCLUDED
1 × 2 DIN radio frame
Mounting frame only
Radio, wiring, screws and accessories are not included
DIMENSIONS
Overall frame size
• Width: 212 mm
• Height: 167.5 mm
• Depth: 80.4 mm
Screen opening
• Width: 180 mm
• Height: 101 mm
Designed for standard 2 DIN 7 inch head units
Always verify radio dimensions before purchase
IMPORTANT NOTES
Designed for aftermarket head units only
Not an OEM part
Check dashboard opening and radio size carefully
Minor adjustment may be required depending on radio model
MATERIAL DISCLAIMER
This is a 3D printed automotive interior part
Minor surface texture or layer lines are normal
Designed for functional in-car use
